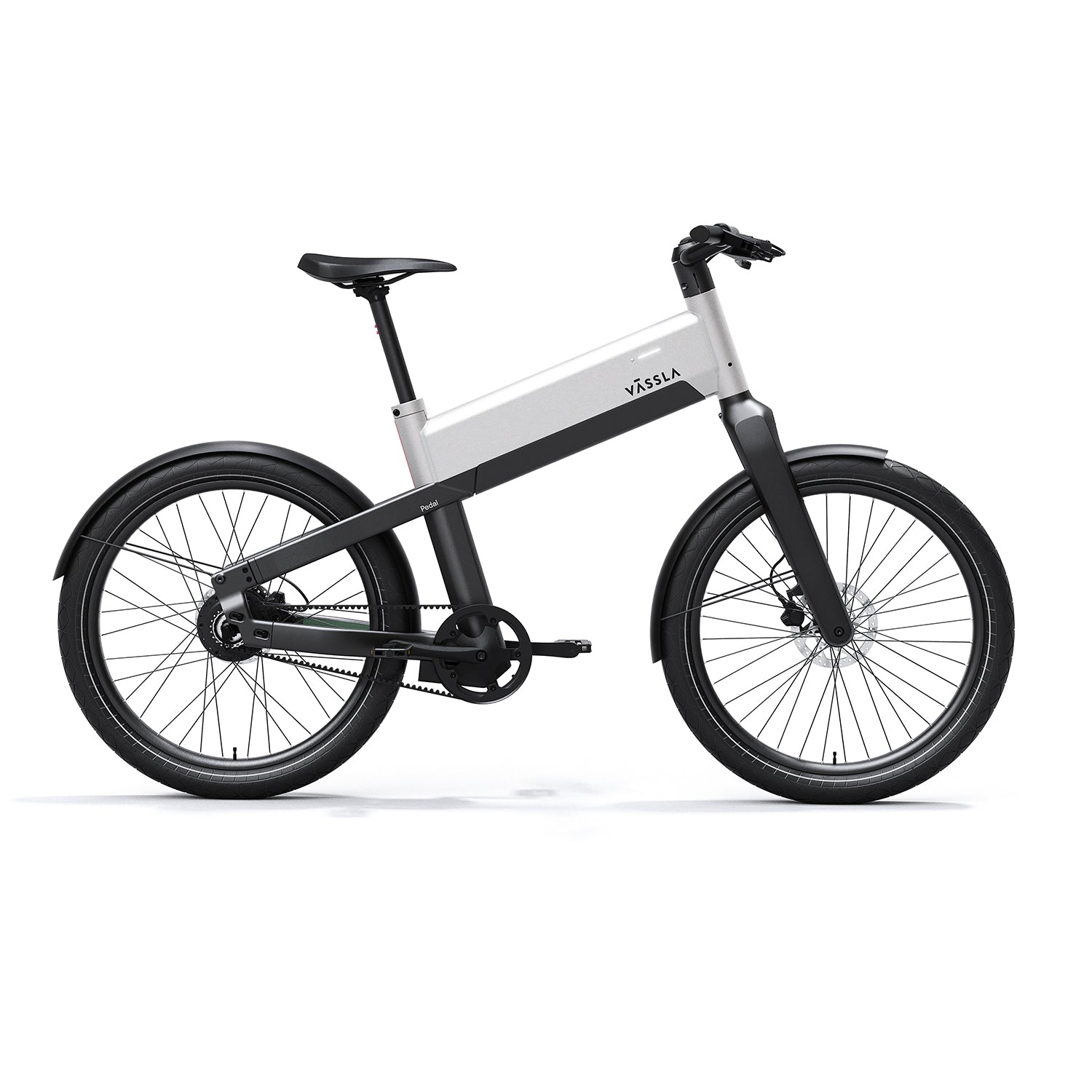

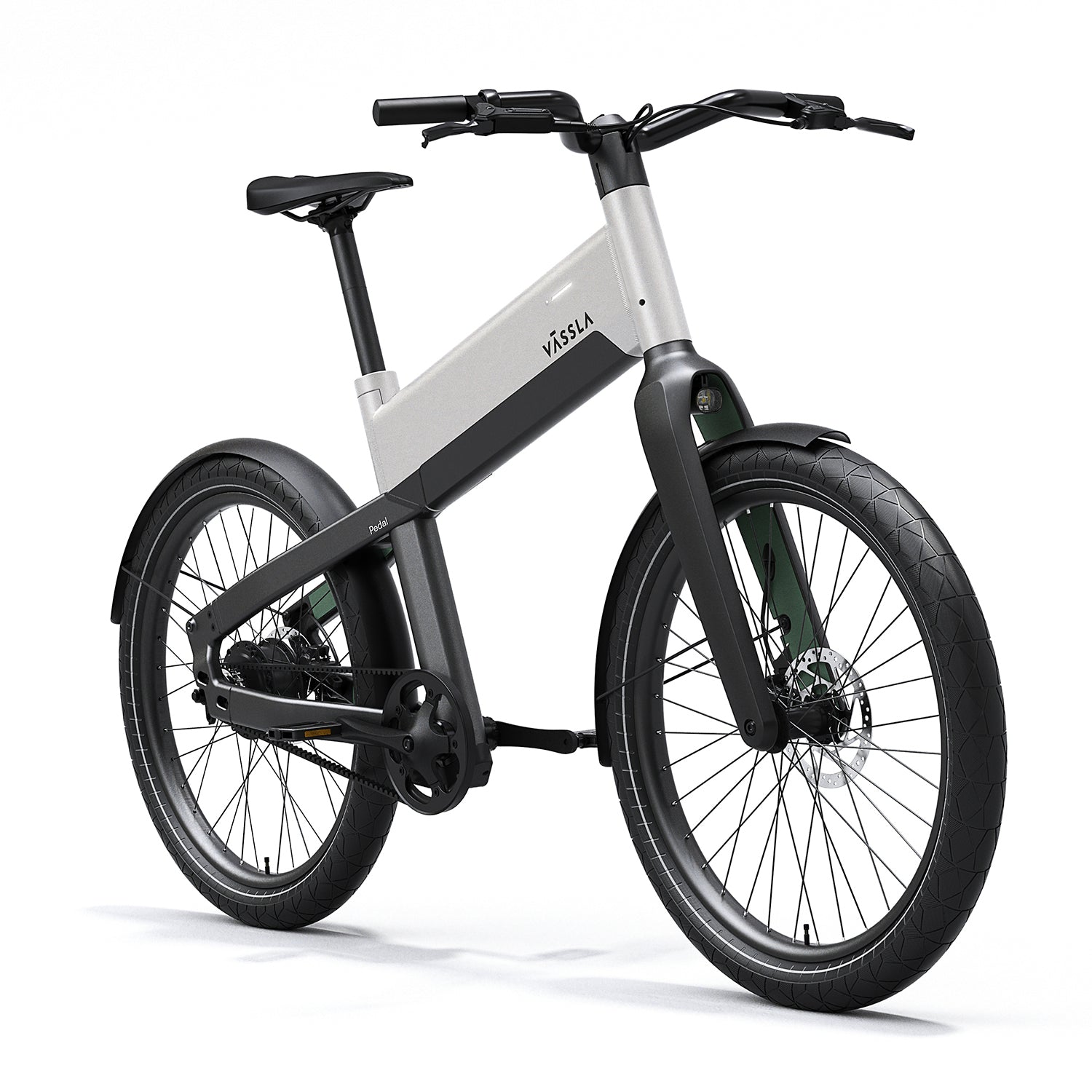

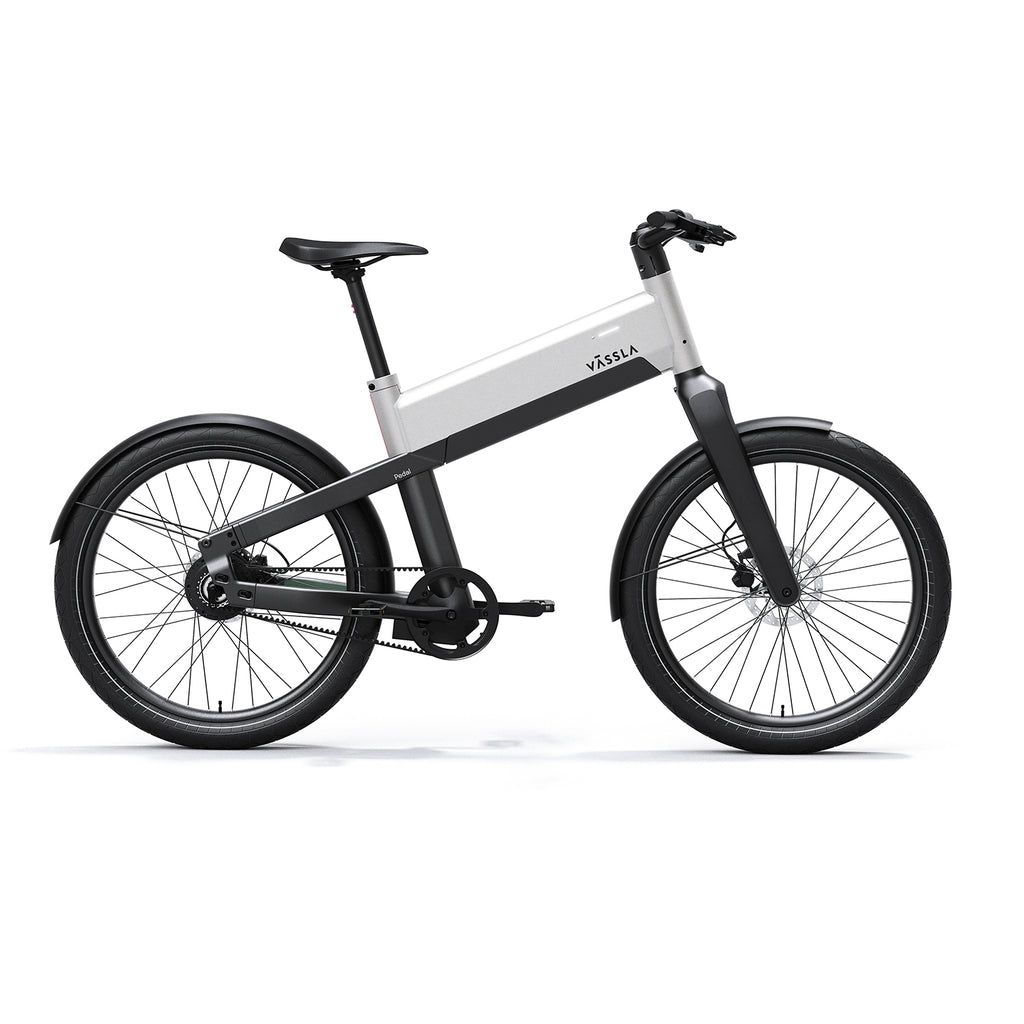

Vässla Pedal

34 995 kr
22 995 kr
2 weeks return*
2 year warranty
1 year of data connectivity
Features
- Belt-drive

- Integrated torque sensor

- Carbon fiber front fork

- 100km electric range

- Hub motor in rear wheel.

- Removable lockable battery

- Dual hydraulic disc brakes

- GPS tracking, lock and app connectivity.

- Built-in frame mount for SP-connect's mobile holder

- Integrated lighting

- Internal cabling

Manufacturing: Our high-tech factory in Taiwan.

The Vässla app is compatible with actively supported iOS and Android versions. It is included for 1 year for each one-time purchase.

Warranty: 2 years
Accessories
The package includes:

- Kickstand.

- Charger.

Additional accessories to buy:

Front and rear racks.

Our pannier racks are compatible with ATRANVELO's patented "AVS" click system. A wide range of accessories are therefore available from the start.

Of course you can put a child seat on the Vässla PEDAL.
Service

Vi rekommenderar att vända sig till närmsta cykelverkstad för service eller reparation.

Cykelverkstaden gör en första bedömning på problemet, vanligtvis kan de hantera samtliga fall.

Mot förmodan att det är ett elektriskt fel/garantiärende, blir vi på Vässla inkopplade för att lösa det med verkstaden.

Specifications
Gender: Unisex
Frame type: Semi-step through
Vehicle type: Electric assisted bike
Speed: 20 mph
Wheel size: 24"
Weight ex battery: 19 kg
Weight battery: 3 kg
Material frame: Aluminum
Material front fork: Carbon fibre
Connectivity: GPS, Bluetooth, Modem
Engine type: Rear wheel hub engine
Engine model: Limotec, Vässla specific.
Engine power: 250 W
Engine torque: 45 Nm
Hill climb: 10% (depending on Rider weight)
Battery type: Swappable li-ion battery pack
Battery cells: Samsung 21700, 10s2p = 2 pairs of cells are wired in parallel, hence the "p", and those 2 pairs are then joined in series, which the "s" refers to. = 20 cells in total
Battery capacity: 360 Wh
Charger model: Sans Electronics SSLC
Charger voltage: 42V, 3A
Charger indicator:
-Green light = ready to charge,
-Red light = charging
Range: Up to 100 km
Front fork: Carbon fibre
Gear: Single gear system
Drive: Carbon belt
Brake type: Hydraulic disc brakes
Brake model: Tektro E-385
Handle bar: Vässla custom made
Grip: OXO GRIP LOCKABLE Comfort
Steering stem: Vässla custom made
Seat model: Velo VL-3533
Seat pole: Vässla custom made
Front light model: Lezyne HECTO STVZO E65
Front light effect: 4W, 210 lumens, 65 Lux
Back light: Seat post integrated LED's, Vässla custom made
Tire size: 24"
Tire model: CST C1381, 24"*2.4,61-507
Tire tube type: Black, puncture-resistant inner layer, with reflective strip
Operating temp battery:
-Charge: 0~40°C
Discharge: -20~50°C
Storage Temperature: -20~60°C (one month)
-20°C ~45°C (3 months)
-20°C ~23°C ( 1 Year )"
Cycle Life: 500 Cycles 0-100% (1000 cycles 50-100%)
SOC, Battery state of charge light:
- Twinkling red light>=32V 10%
- Red light >=34V 20%
- Green light >=36V 40%
- Blue light >=37V 50%"
Medvetet utformad för vardagen

Focus on the commuter

The e-bike has been specially designed to allow you to cycle in the most optimal posture possible. The 60° seating position helps to reduce pressure on your Wrists and reduce strain on your neck, meaning you can enjoy your ride for longer without discomfort.

Whether you're commuting to work, running errands around town or just enjoying a leisurely ride, the Vässla Pedal will make your riding experience more enjoyable than ever before. So why not upgrade your ride and experience the ultimate in riding comfort with Vässla Pedal today?
Exercise & Safety

For a smooth everyday life

Connect the e-bike to your phone to activate our Pedal Assist feature. The app is needed to make full use of the electric ride.

Riding an e-bike is a great way to lower the barrier to getting out and moving. With Pedal, you can enjoy the ride without feeling like you're trying too hard. Say goodbye to the arduous journey and hello to the smooth ride!
Get going

Assembly & Instructions

Here you will find all the manuals, user guides, support and other interesting information you may be looking for.
*Please note that for a return to be processed, the product must be in its original packaging and in new condition, without scratches or signs of use. The accessories must not have been used. If the product has an adjustable seat, make sure it is returned in the same setting to avoid leaving marks. This is necessary so that we can resell the product after the trial period.
×
